Pit Deck

Date

September 2024

Location

Wichita State

Project Type

Scenic Carpentry

Carpenter

Worked in the WSU Scene Shop on the construction of making a deck to cover the pit for the 2024-2025 theatrical season. Using 2x8, attached beams inside the pit and supported with legs and hog troughs, before covering with 3/4 plywood and painting black.

A full deck for the pit on Wilner Auditorium stage.

Technical Director: Ed Baker

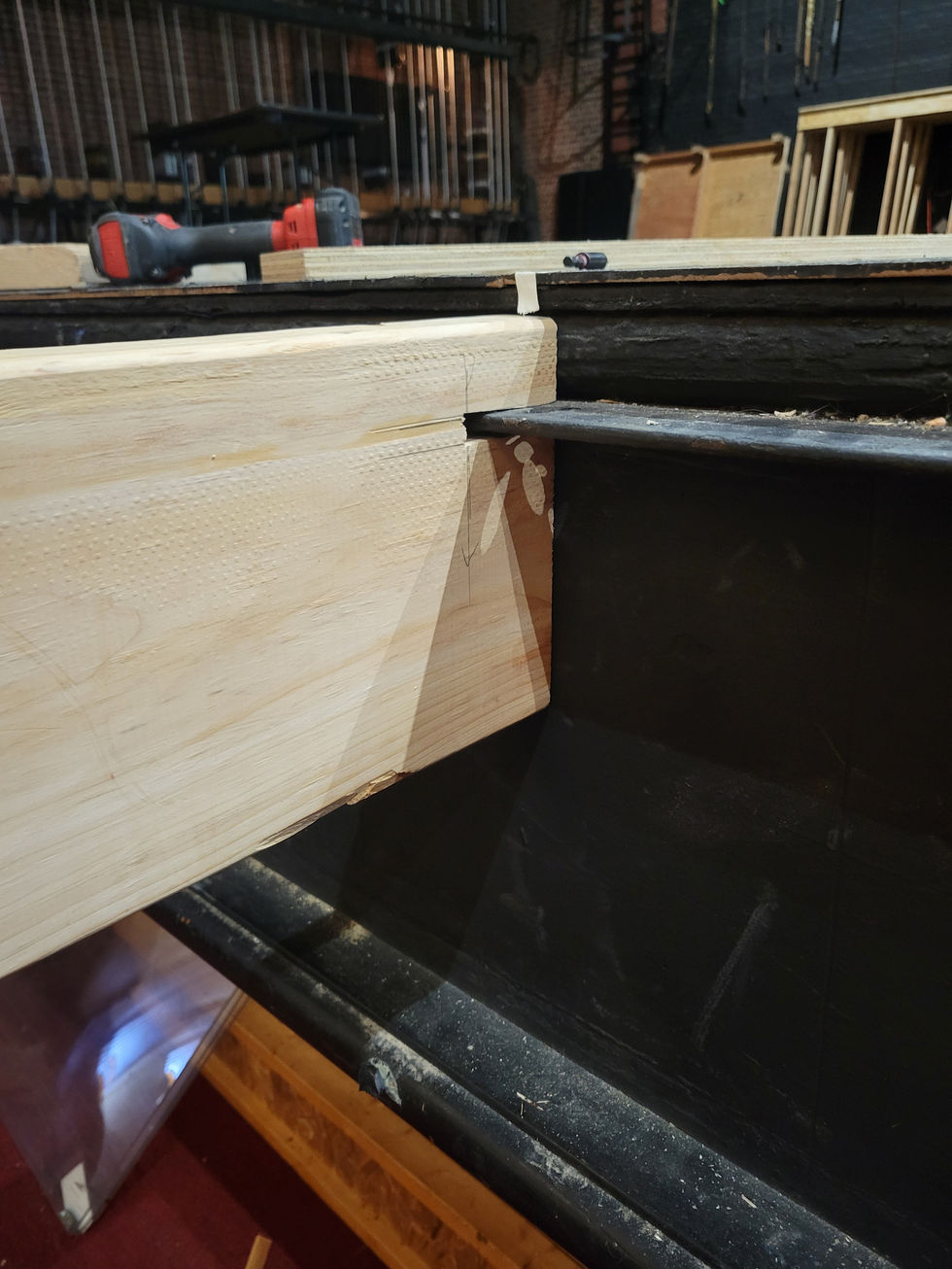

Notches cut into 2x8 to hang on iron

Notches cut into 2x8 to hang on iron

2x8 attached onto angled wall

2x8 attached onto angled wall

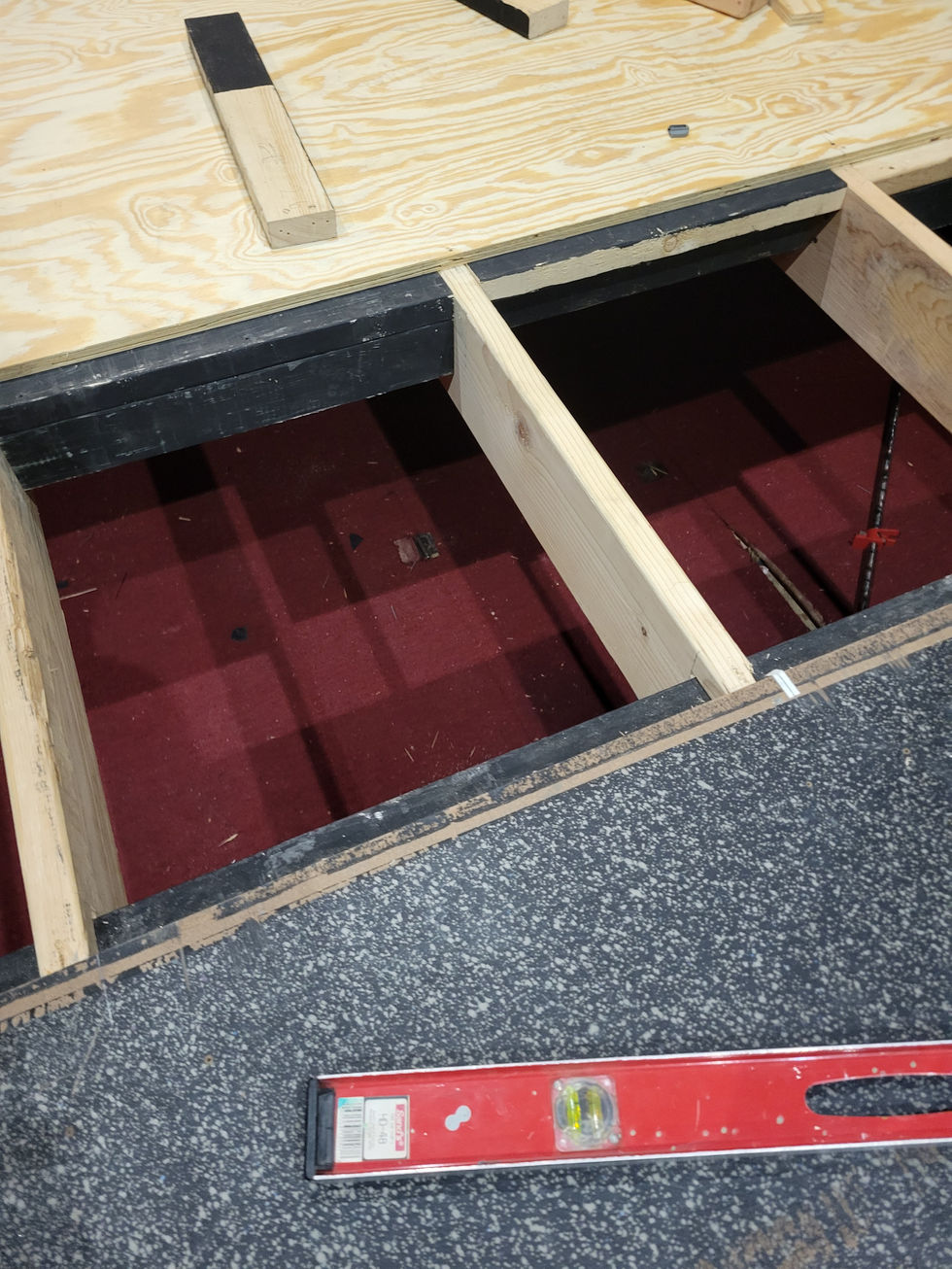

Hog troughs used to spread and stabilized beams

Hog troughs used to spread and stabilized beams

Legs to support under the deck from in the pit

Legs to support under the deck from in the pit

3/4 ply used for the deck

3/4 ply used for the deck

Angle iron used as a pathway to circular saw cut the curve into the deck

Angle iron used as a pathway to circular saw cut the curve into the deck

Finished deck; unpainted

Finished deck; unpainted
